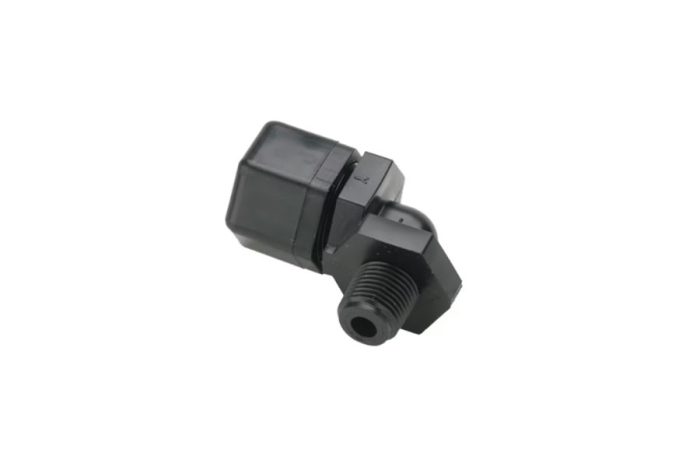

P4ME4
Parker’s Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Orientation: ELBOW
End 1 Type: TUBE
End 1 Size: 1/4
End 2 Type: MNPT
End 2 Size: 1/4
Description
| Shape: | Elbow 90° |
| Minimum Operating Temperature: | 0 °F, -18 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Maximum Operating Pressure: | 300 psi, 20 bar |
| Tube Material: | Thermoplastic, Glass, Soft Metal |
| For Fluid Type: | Water, Air, Other Compatible Fluids |
| Application: | Filtration, Purification, Dispensing |
| Gripping Ring Material: | Stainless Steel AISI 302 |
| Seal Material: | Nitrile (O-Ring) |
| Specifications Met: | FDA, NSF 51 |
| Connection 1 Tube Outside Diameter: | 1/4″ (O.D.) |
| Body Material: | Black Polypropylene |
| Connection 1 Type: | Compression |
| Connection 2 Type: | NPTF |
| Connection 2 Thread Size: | 1/4″ |
| Configuration: | Tube to Pipe |
